Overview

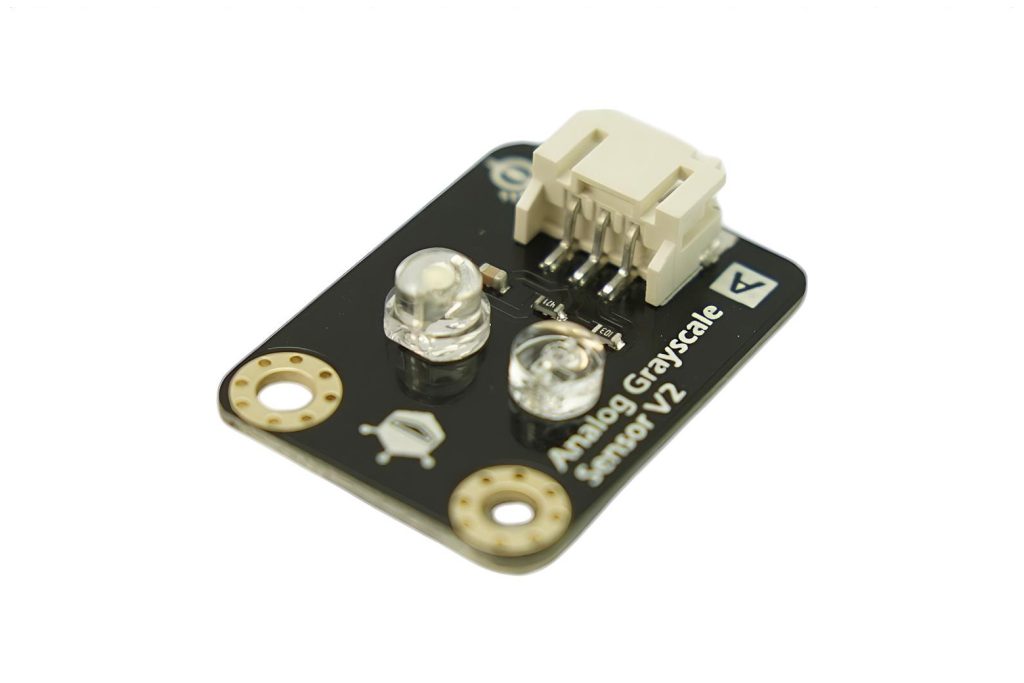

The DFRobot Arduino grayscale sensor is designed to detect reflected light levels across a black-to-white range. It uses a photocell together with an onboard white LED to help compare surface reflectivity and output grayscale values.

With a supply range of 3.3V to 5V and an analog interface, this sensor can be used in basic light-sensing projects such as automatic lighting, line-following robots, and simple light-based signaling experiments.

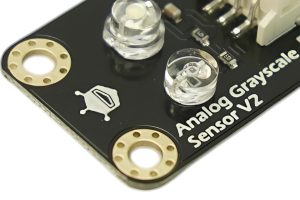

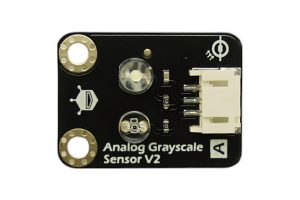

The module includes a connector designed for improved durability, plus clear A/D interface markings and a compact board layout for easier integration into Arduino setups.

• Measures grayscale light intensity from black to white
• Analog output interface
• 3.3V to 5V supply voltage range
• Onboard LED for reflective sensing
• Compact 22 x 30 mm board size

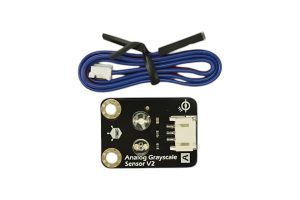

• Includes analog cable

Specifications should be verified on the official manufacturer page.
