Overview

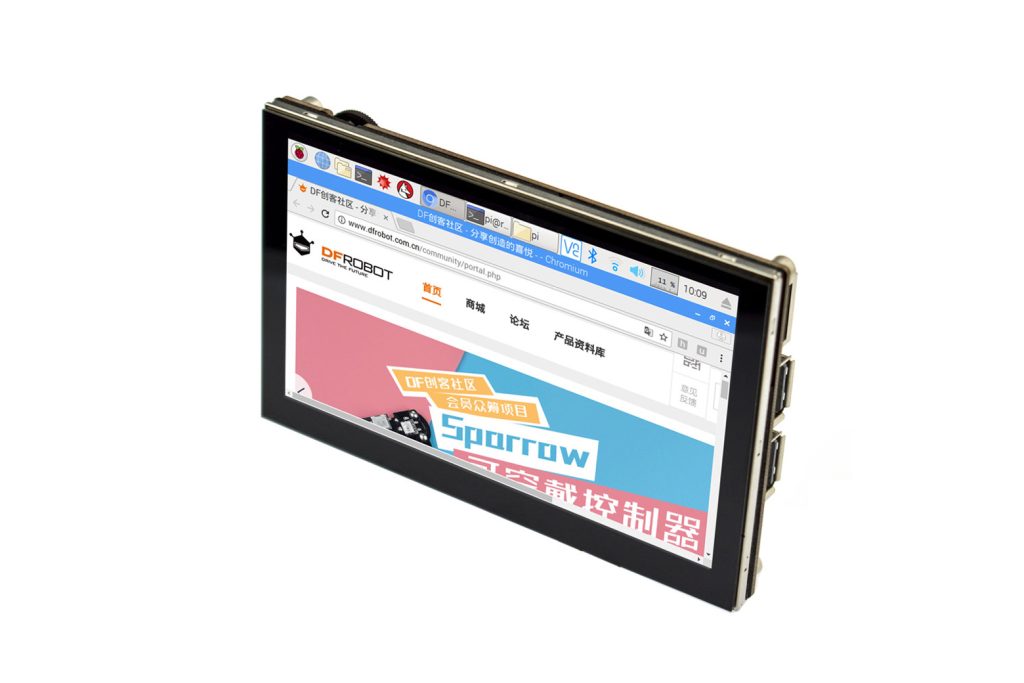

This 5-inch Raspberry Pi touchscreen from DFRobot is built around a 800×480 display and connects through the Raspberry Pi DSI interface. It includes a capacitive touch panel with support for up to 5 touch points.

The screen is designed for straightforward installation, with rear mounting holes that allow the Raspberry Pi to be attached directly to the display. It also draws power from the Raspberry Pi, so no separate power supply is required for the touchscreen itself.

A backlight adjustment function is available through the potentiometer on the back of the display. The panel operates at 3.3V and is listed with a 60Hz refresh rate, 550 cd/㎡ luminous efficiency, and an operating temperature range of -20℃ to 70℃.

• 5-inch display with 800×480 resolution
• Capacitive touch with 5 touch points
• Raspberry Pi DSI interface
• Direct mounting design for Raspberry Pi
• Backlight adjustment via rear potentiometer
• Includes mounting hardware and FFC cable

Specifications should be verified on the official manufacturer page.
