Overview

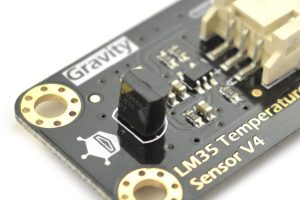

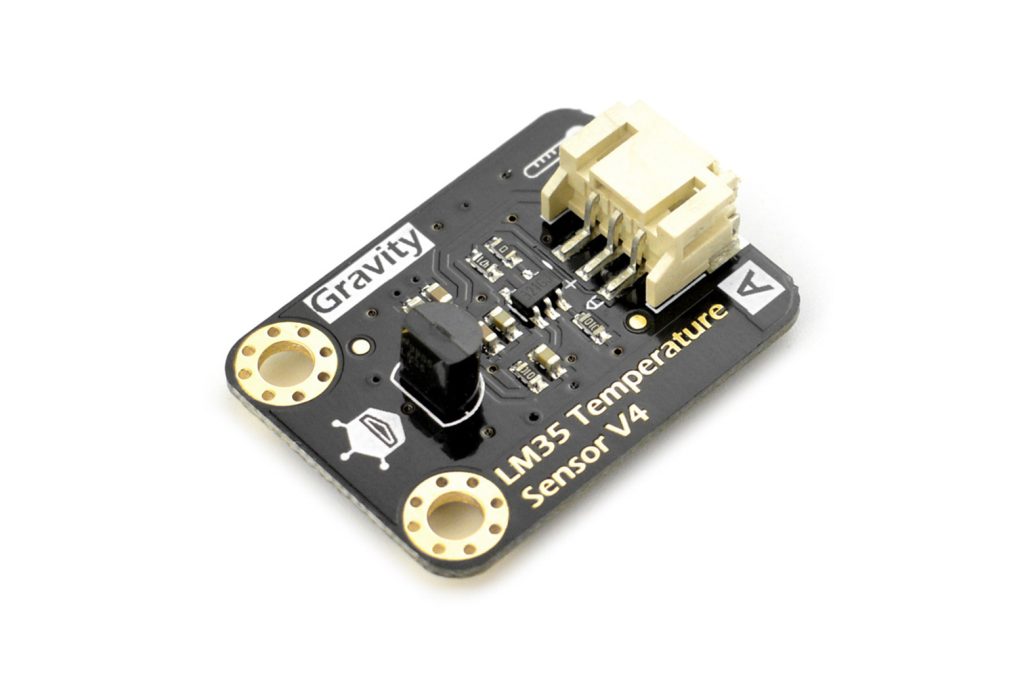

The DFRobot Gravity Analog LM35 Temperature Sensor is a simple, low-cost option for reading ambient air temperature with Arduino, ESP32, and other microcontroller boards. It uses the LM35 semiconductor sensor and provides a linear analog output, making it a useful choice for learning how analog temperature sensing works.

Because the sensor outputs 10 mV per degree Celsius, you can read temperature directly through a microcontroller ADC without needing I2C, UART, or a separate sensor library. It is designed for basic indoor temperature monitoring and classroom electronics projects.

The sensor supports 3.3V to 5V operation and includes a Gravity connector plus an analog cable for easier wiring. Its stated functional range is 0°C to 100°C, and it is intended for dry indoor ambient air measurements.

• Analog LM35 sensor with 10 mV/°C output
• Works with 3.3V to 5V microcontroller boards
• No digital protocol required
• Gravity connector included
• Suitable for ambient air temperature sensing

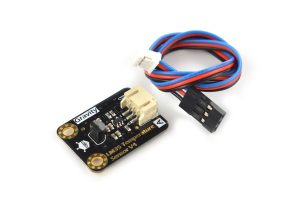

• Includes analog sensor cable

specifications should be verified on the official manufacturer page.
